13dBi Communication Antenna Flat Panel Directional Antenna 2400 To 2500 / 5150 To 5850MHz

Brand Name : WSD

Model Number : FTD-2458PB1313VH30B

Certification : no have

Place of Origin : CHINA

MOQ : 2

Price : $50~300

Payment Terms : L/C,T/T

Supply Ability : 500

Delivery Time : 30 work days

Freq.Range-MHz : 100（2400 to 2500）/ 700 （5150 to 5850）

Polarization : Vertical and Horizontal

Gain-dBi : 13

Half-power beam width-° : H:30 E:30

Cross-pol-isolation-dB : ≥ 20（2400 to 2500）/ ≥ 25（5150 to 5850）

Contact Now

Directional Flat Panel Antenna 2400 to 2500 / 5150 to 5850 MHz
  • Model: FTD-2458PB1313VH30B
  • Name: Directional Flat Panel Antenna
  • Frequency Range: 2400 to 2500 / 5150 to 5850 MHz
Communications System
  • 2.4/5.8GHz WLAN/WIFI/ISM/UNII
  • Spread Spectrum Communication
Application Scenario
  • Point to point,Point to multipoint,
  • Wireless data and image transmission,
  • Outdoor signal directional coverage,
  • Public wireless hotspot coverage,
  • Wireless bridging,Bridge antenna,
  • IEEE802.11a/b/g/n
13dBi Communication Antenna Flat Panel Directional Antenna 2400 To 2500 / 5150 To 5850MHz 13dBi Communication Antenna Flat Panel Directional Antenna 2400 To 2500 / 5150 To 5850MHz
Electrical Specifications
2400 to 2500 5150 to 5850
Freq.Range-MHz 100 700
Polarization Vertical and Horizontal
Gain-dBi 13 13
Beam Electrical Downtilt-° 0
Half-power beam width-° H:30 E:30 H:30 E:30
Cross-pol-isolation-dB ≥ 20 ≥ 25
F/B-dB ≥ 20 ≥ 25
Impedance-Ω 50
VSWR ≤ 1.5 ≤ 2.0
Max.Power-W 50
Lightning Protection DC Grounded
Mechanical Specifications
Connector 2 ×N female
Connector Position Back
Dimension-MM About 260×190×30
Weight-KG About 1.2
Radome material ABS
Radome color White
Mechanical tilt-° 0 to 30
Operational Temperature-℃ -40 to 60
Storage Temperature-℃ -55 to 85
Relative Humidity-% 5 to 95
Rated Wind Velocity-M/S 60

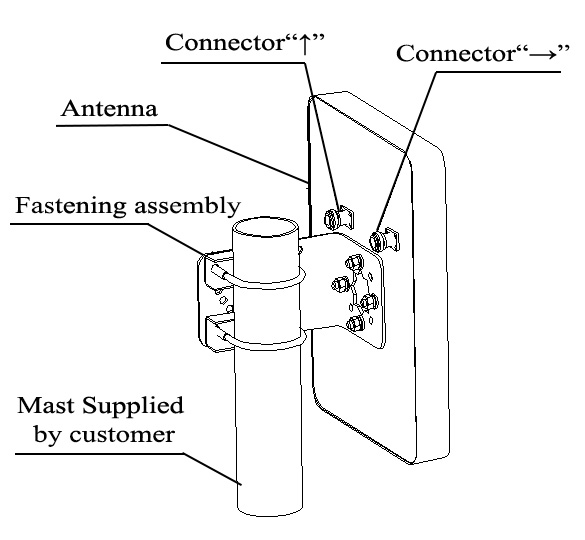

Mounting way Mast【Φ35 to 50】
